| Technical
Specs£º |
Lens

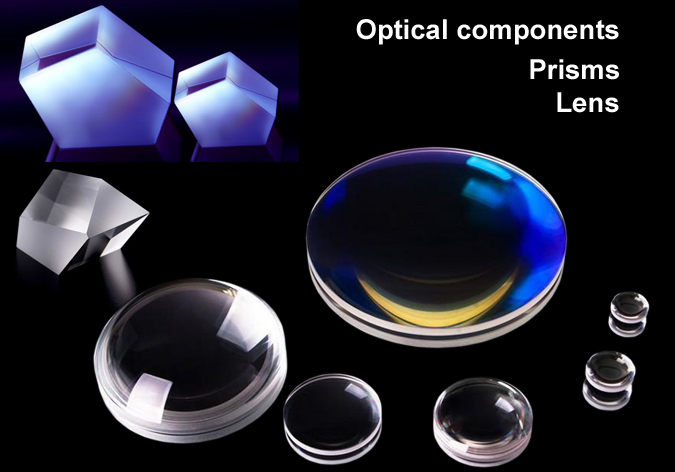

BCI manufactures various shape and special material optical lens. Wide selection of optical lens ranges from standard lens to customized lens, including cylindrical lens, spherical lens, Aspherical lens, strange shape lens and etc.
1. Materials: all kinds of high quality optical glass, quartz and crystal.
2. Processing capability: Outer diameter: ¦Õ1mm~¦Õ320mm; R: 1.5~¡Þ; Surface Accuracy: within 1/10¦Ë; Eccentricity: 15", center thickness tolerance: ¡À0.01, diameter tolerance: ¡À0.0005mm
3. Processing equipments are imported from Germany, Korea and Japan.
4. Coatings for lens include normal BBAR coating, dichroic coating, super broad band antireflective coating, filtering coating, reflective coating an
prisms
BCI produces series prisms including roof prisms, right angle prisms, penta prisms, dove prism, half pentagonal prisms, porro prisms, Corner Cube Prisms, Beamsplitter Cube, large-size prisms, solar rod prism, X-Cubes assembly, finger print prism, DVD series prisms, agglutinate prism series, etc.
1. Materials: H-K9, H-BAK7, the kinds of high quality optical glass.
2. Processing capability£ºAngular Accuracy 5"£»Surface Accuracy£ºwithin1/10¦Ë£»Pyramid Error£º1"£»¡¡Size Accuracy£º¡À0.02mm.
3. Application: optical apparatus, opto-electrical digital products, image equipments, fingerprint systems, medical instruments, precise digital control machinery and other optical fields, popular science educational apparatus, optical communication, etc.
|
